Máy phun giấy nhôm
Created with Pixso. LKS300 Aluminum Foil Sheet Pop Out Machine V Z Shape Interlocking Baking Paper

LKS300 Aluminum Foil Sheet Pop Out Machine V Z Shape Interlocking Baking Paper

Tên thương hiệu: LIKEE
Số mô hình: LKS300
MOQ: 1 bộ
giá bán: USD39,000-45,000
Thời gian giao hàng: 1 tháng
Điều khoản thanh toán: T/T, LC
Thông tin chi tiết
Nguồn gốc:
Thượng Hải, Trung Quốc
Chứng nhận:
CE, ISO
Người mẫu:
LKS300
Nhóm:
Máy nhôm lá bật ra
Gấp hình:
Lồng vào nhau hình chữ V/Z, góc gấp 3-5mm
Mother cuộn có sẵn chiều rộng:
Tối đa.610 và 910mm
Điện:
380V 50Hz 3 pha + ròng + Trái đất
Tiêu thụ không khí:
0,5-0,8MPa
Cài đặt nguồn điện:
27kw
Tổng trọng lượng:
4000kg
Hiệu quả sản xuất:
400-500 tờ/phút
Máy tổng thể kích thước:
5000x2000x1700mm
Độ dày lá:
0,010-0.020mm
Khả năng cung cấp:
1 bộ 1 tháng
Làm nổi bật:

aluminum foil pop out machine

,

V Z shape baking paper

,

interlocking aluminum foil sheets

Mô tả sản phẩm







LKS300 Aluminum Foil Sheet Pop Out Machine V Z Shape



Interlocking Baking Paper




Product Description:



LKS300 Aluminum Foil Sheet Pop-out Machine is mainly used for processing V/Z shape interlocking baking paper. It can automatically cut V-shape or Z-shape interlocking structures, and the cut baking paper is delivered via pop-out design, reducing manual intervention, suitable for batch production in baking packaging factories. Aiming at the structural characteristics of V/Z shape interlocking, the machine optimizes the cutting path to ensure accurate locking edges, no easy breakage, and uniform finished product size, which can match the packaging needs of baked foods (such as bread, cakes). Whether cutting V-shape alone or switching to Z-shape, the operation is simple, and it can quickly adapt to manufacturers' processing needs for different specifications of baking paper.


LKS300 Aluminum Foil Sheet Pop Out Machine V Z Shape Interlocking Baking Paper 0


Key Features:

  1.

  2. • Specialized V/Z shape interlocking design
    • Quick mold change system
    • Automatic counting and stacking
    • Custom molds available



Parameter Table:



Forming Type V/Z shape interlocking
Raw Material Aluminum Foil
Material Thickness 10-20micron
Mother Roll Core Diameter 76mm(3inch)
Max Mother Roll Diameter Max.800mm
Mother Roll Available Width Max.635mm&950mm

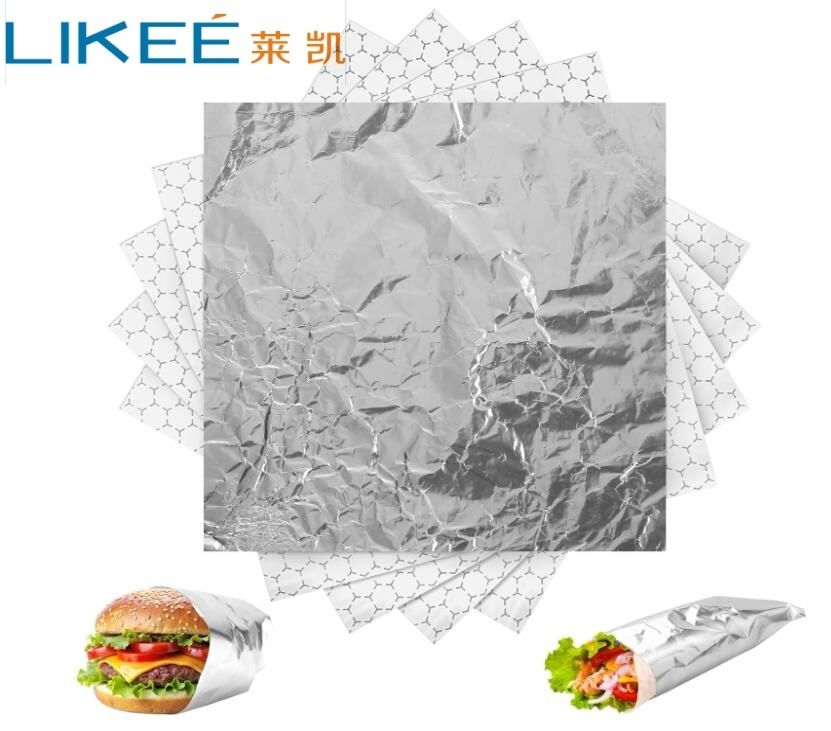

Sample Display:

LKS300 Aluminum Foil Sheet Pop Out Machine V Z Shape Interlocking Baking Paper 1LKS300 Aluminum Foil Sheet Pop Out Machine V Z Shape Interlocking Baking Paper 2LKS300 Aluminum Foil Sheet Pop Out Machine V Z Shape Interlocking Baking Paper 3LKS300 Aluminum Foil Sheet Pop Out Machine V Z Shape Interlocking Baking Paper 4

Product Q&A:



Q: What's the main feature of this machine?
A: Specifically produces V and Z shape interlocking baking paper for secure packaging.

Q: Will the interlocking structure after cutting break easily?

A: The cutting path has been optimized, the locking edge part is cut stably, and it is not easy to break.

Q: How thick V/Z shape baking paper can the machine cut?

A: It is compatible with the thickness of conventional food-grade baking paper, and the specific can be confirmed according to the actual material.

Q: What's the production speed?
A: Adjustable speed, up to 400-500 pcs per minute.

Q: Will the pop-out sheet delivery cause paper jams?

A: The sheet delivery structure is adapted to the characteristics of baking paper, and it is not easy to jam under normal use.
